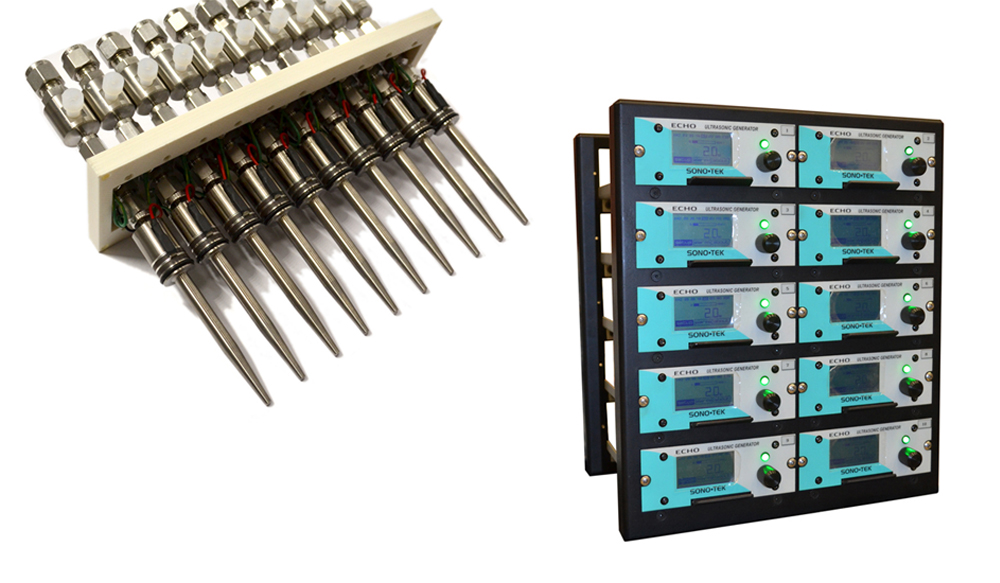

MedXT Retrofit

Retrofit configuration specially designed for applying blood collection tube coatings such as Heparin, EDTA and clotting agents. Small batch coating systems typically configured with 10 nozzles featuring integrated liquid delivery and air pressure header ready to be triggered by a user interface. (custom quantities available)

Basic Specifications

Dimensions (Retrofit E-Box): 370mm W x 408mm H x 266mm D (14.6”W x 16”H x 10.5”D)
Control: 109mm (4.3”) LCD, capacitive touch
Power Requirements: 120V, 220V +/-10%, 50-60Hz
Air: 551.6 kPa (80 PSI) dry, unlubricated air
Certification: CE

System Options

Custom Option: Custom quantity nozzle configuration
