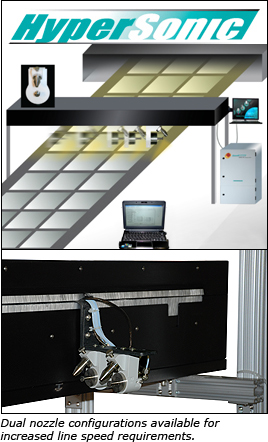

Hypersonic
High Speed Ultrasonic Coater
Ideal for any application requiring high speed reciprocation and uniform thin deposition.
- High Speed Reciprocator - up to 79 inches/sec (2 Meters/sec)
- Product sensing capability or user controlled on/off spray trigger using integrated PC control
- Belt-driven actuator assembly
- Easily retrofits into existing conveyor systems
- 48 inch (122 cm) or 24 inch (61 cm) width coverage
- Incorporates non-clogging, reliable, precision ultrasonic atomizing nozzle
- Ability to customize droplet sizes and spray shapes with choice of 4 different frequency ultrasonic nozzles
- Ultrasonic nozzle provides uniform, thin film coverage with minimal bounceback or overspray
- User friendly PC control with Windows-based programming and recipe storage
Operating Principle
The Impact System combines Sono-Tek’s unique ultrasonic atomizing nozzle with a controlled stream of air from the flat jet air deflector. The ultrasonically produced spray at the atomizing surface is immediately entrained in the air stream, creating a fan-shaped spray pattern 2-4” wide (5-10 cm). The velocity of the air stream is controllable,
allowing low or high-impact of the atomized spray onto the product or substrate. Velocity of the Impact air is independent of liquid flow.
Impact nozzles are available in 35, 48, 60 and 120 kHz frequencies with median drop sizes of 49, 38, 31 and 18 microns, respectively.*
*Results based on water
Total Customer Support
Sono-Tek has been developing and manufacturing a wide range of quality products based on our patented ultrasonic spray technology for more than 25 years. Each ultrasonic system is configured and factory tested specifically for each application. Installation at your facility will be performed by our experienced field service staff who will work with you to set up your process and train your production and service personnel.

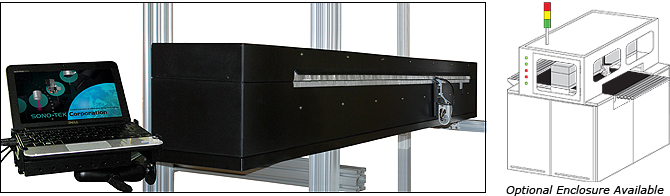

System Components
