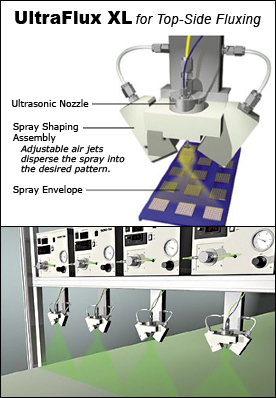

Multiple modules can be integrated into a single unit to spray flux over large areas.
UltraFlux
The Ideal Technology for Top-Side Fluxing
Custom-Engineered with the Industry’s Leading Technology
The UltraFlux XL incorporates Sono-Tek's industry-proven ultrasonic spray fluxing nozzles into custom-engineered solutions for wide-area top side fluxing. Using Sono-Tek’s patented ultrasonic spray technology, the UltraFlux XL System delivers a soft, uniform, and highly controllable spray pattern over virtually any width.The UltraFlux XL System offers significant advantages over conventional pressure-spray methods in a broad range of fluxing applications. Waste is greatly reduced, since the system does not produce overspray, and maintenance is kept to a minimum because nozzles will not clog. In addition, the titanium and 316 stainless steel construction of the UltraFlux XL System makes it compatible with any liquid flux.UltraFlux XL Spray Fluxers are ideal for all top side fluxing applications.
Manufactured by the industry’s leader in ultrasonic spray equipment, each UltraFlux XL System features:
- Uniform flux application
- High transfer efficiency
- Low velocity spray reduces cleanup
- Minimum overspray
- Wide range of flow rates
- Non-clogging ultrasonic nozzles
- Reliable performance
- No moving parts
The UltraFlux XL Standalone SystemM at left is used by a large semiconductor manufacturer to apply liquid flux to BGAs and pallets, which are transported on a conveyor and identified by a laser reader. Based on the type of BGA, spray head #1 or spray head #2 is activated to dispense a precise amount of no-clean or water-soluble flux. The two MCS Control Units (shown through the open doors under the spray chamber) provide power and liquid to the ultrasonic spray heads. All operating parameters are fully programmable through the keypad on the user-friendly PLC interface.
